OYI HD-08

MPO Modular Cassette

OYI HD-08

OYI HD-08 is an ABS+PC plastic MPO box consists of box cassette and cover. It can load 1pc MTP/MPO adapter and 3pcs LC quad (or SC duplex) adapters without flange. It has fixing clip that suitable for installing in matched sliding fiber optic patch panel. There are push type operating handles at both side of MPO box. It is easy to install and disassemble.


Product Detail

FAQ

Product Tags

Product Features

1. Press buckle design, easy installation, suitable for fiber optic patch panel and rack.

2. Suitable for different type optical fiber connection.

3. ABS+PC plastic, light weight, high impact, nice surface .

4. Can load LC quad or SC duplex adapter without flange .

Dimension: (mm)


Product configuration

Optical Fiber Type

LC Quad Adapter

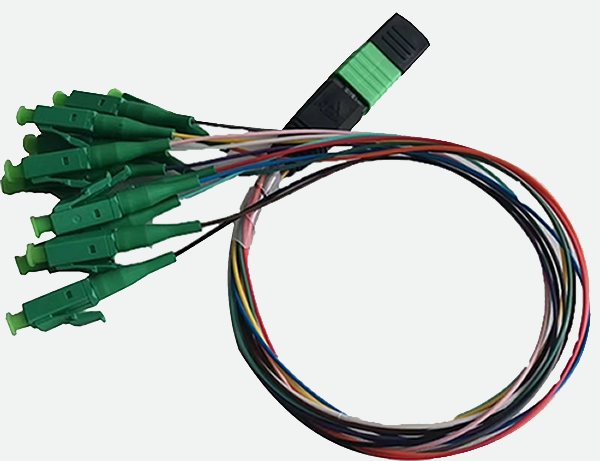

MPO/MTP-LC patch cord

MTP/MPO adapter

OS2(UPC)

img4 img5 img8

OS2(APC)

img7 img6 img8

OM3

img11 img10 img8

OM4

img14 img10  img8

Images

OS2(UPC)

OS2(APC)

OM3

OM4













Packing information

Carton

Sizecm

Weight(kg)

Qty per carton

Inner box

16.5*11.5*3.7

0.26

3pcs

Master carton

36*34.5*39.5

16.3

180pcs

图片 4

 Inner Box

b
b

Outer Carton

b
c
